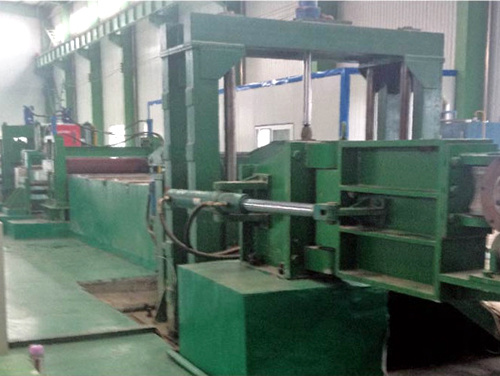

CBL- Coil Building-up Line

Main Technical Data

Raw Material

200,300,400 series Stainless Steel，Q195、Q215、Q235、08Al、20、Low-alloy steel、SPHC、 SPHD、SPHE etc;

Strip Width

600~1250mm

Strip Thickness

0.3~4.0mm

Coil ID/OD

Ø 610mm/ Ø 800~2100mm

Coil Wt.

Max.25T

Line Speed

Max.120m/min

Coiling Tension

T≤160kN

Uncoiling Tension

T≤60kN

Line Features

Coil Building-up Line is auxiliary equipment of cold rolling mill, which is mainly used to observe the surface quality of the materials and weld baby coil. The quality stability is effectively guaranteed through checking, treatment and control for this procedure, so that can satisfy customer’s requirements.
