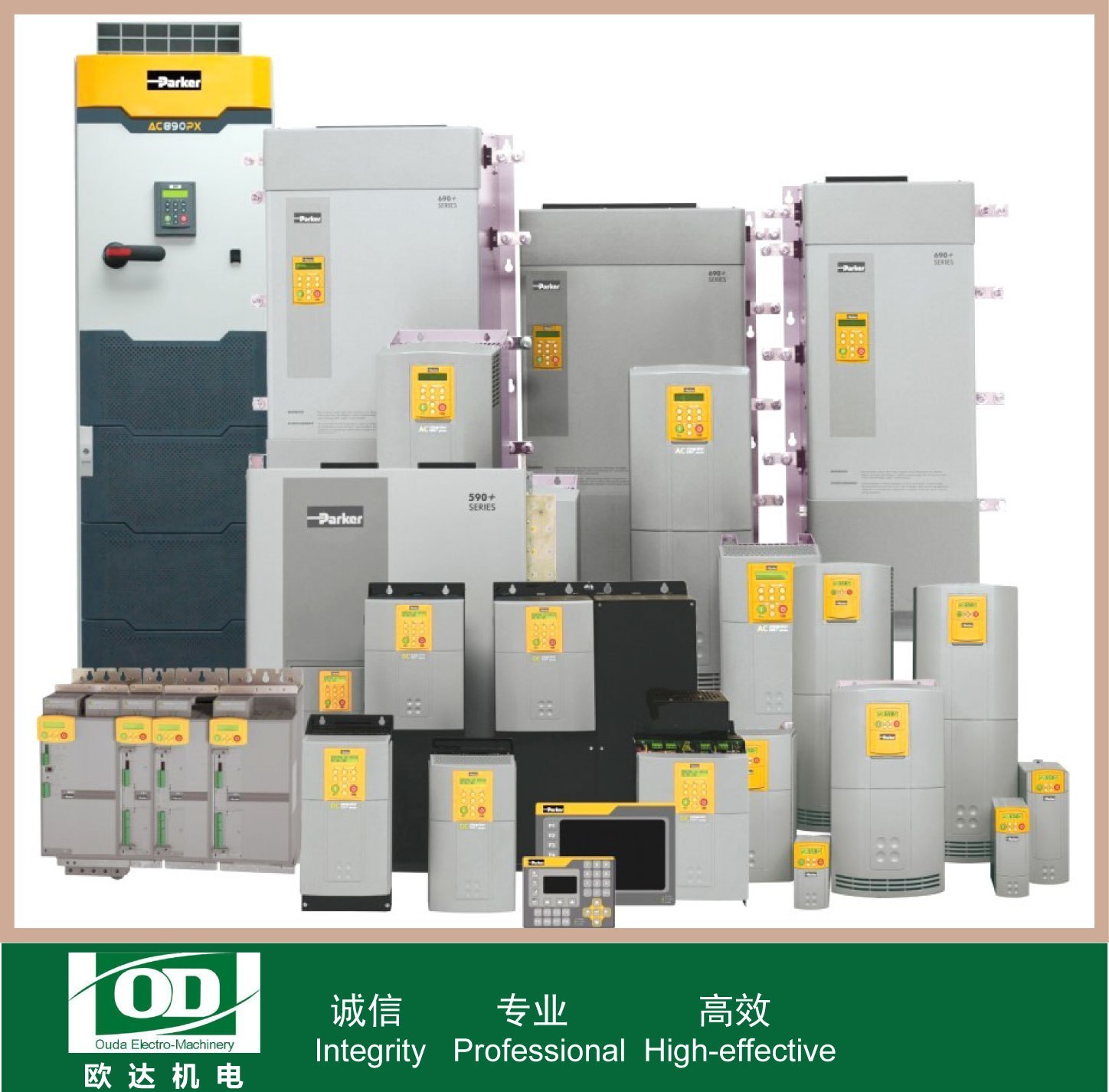

SSD Series DC Speed Regulator

590P Series Features

1, thin volume, the new structure of 590P is 40% smaller than 590C
2、A variety of communication function modules are available, such as PROFIBUS, MODBUS, DEVICENET, EI-BISYNC, LINK, etc.
3、High resolution analog input and output points, 12bit+
4、Simple control panel, provide local/external signal mode; local operation mode is convenient for initial use and debugging
5、590P uses the same speed feedback as 590C, speed measurement generator board / optical code board
6, the wiring method is the same as the 590C; the terminal on the control board is also the same as the 590C
7、The same appearance as the Continental 650/690P series inverters
. 8、All the armature/field voltage/current is defined in software form

The 590P series comes in 5 frames/sizes

1、“frame(FRAME)1”specifications are 15A/35A two kinds, 4A magnetic current (internal power supply)
2、“Frame(FRAME)2”Specifications have 40A/70A/110A/165A,10A magnetic field power supply
The new 590P control panel is used with the original 590C base, so it only changes the operating interface, and the rest, such as installation/wiring, is the same as the existing 590C, 10A magnetic current
. 4、“Frame(FRAME)4”Specifications 380A/500A/725A/830A, 30A magnetic current. 2 groups of 830A units combined to provide 1580A specifications
5、“Frame(FRAME)H”2200A/2700A is using 590HD base, 60A magnetic current
