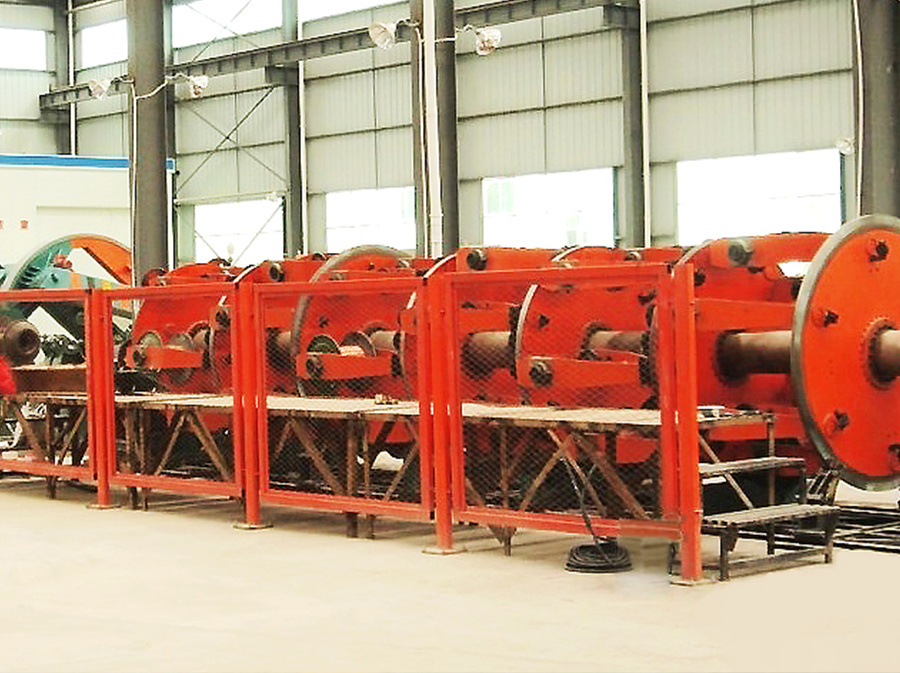

JG36B+36B-Ф500 Steel wire armored machine

Key performance characteristics

  This equipment is mainly used for plastic cables (power cables, control cables and communication cables) for steel wire armoring, but also for copper wire shielding of cross-linked cables.

Main technical parameters

Wire diameter: 1.0—4.0mm   Up to 72 (when synchronized)

Pre-armouring cable diameter: Ф20—Ф100mm

Rotary speed of winch: 19--63.5rpm  6 stages

Armored pitch: 70--1821mm

Rotary speed of wrapping head：125.4--323.5rpm

Ribbon diameter: 500mm

Bandwidth: 20—80mm    2 bands

Wrapping pitch: 14--276mm

Traction line speed：4.5--34.6m/min  36 levels

Traction sheave diameter: Ф2500mm Twin wheels, twin-active

Main motor power: 75kW  Frequency conversion

Maximum payoff reel size: PN2500

Largest take-up reel size: PN 3150
