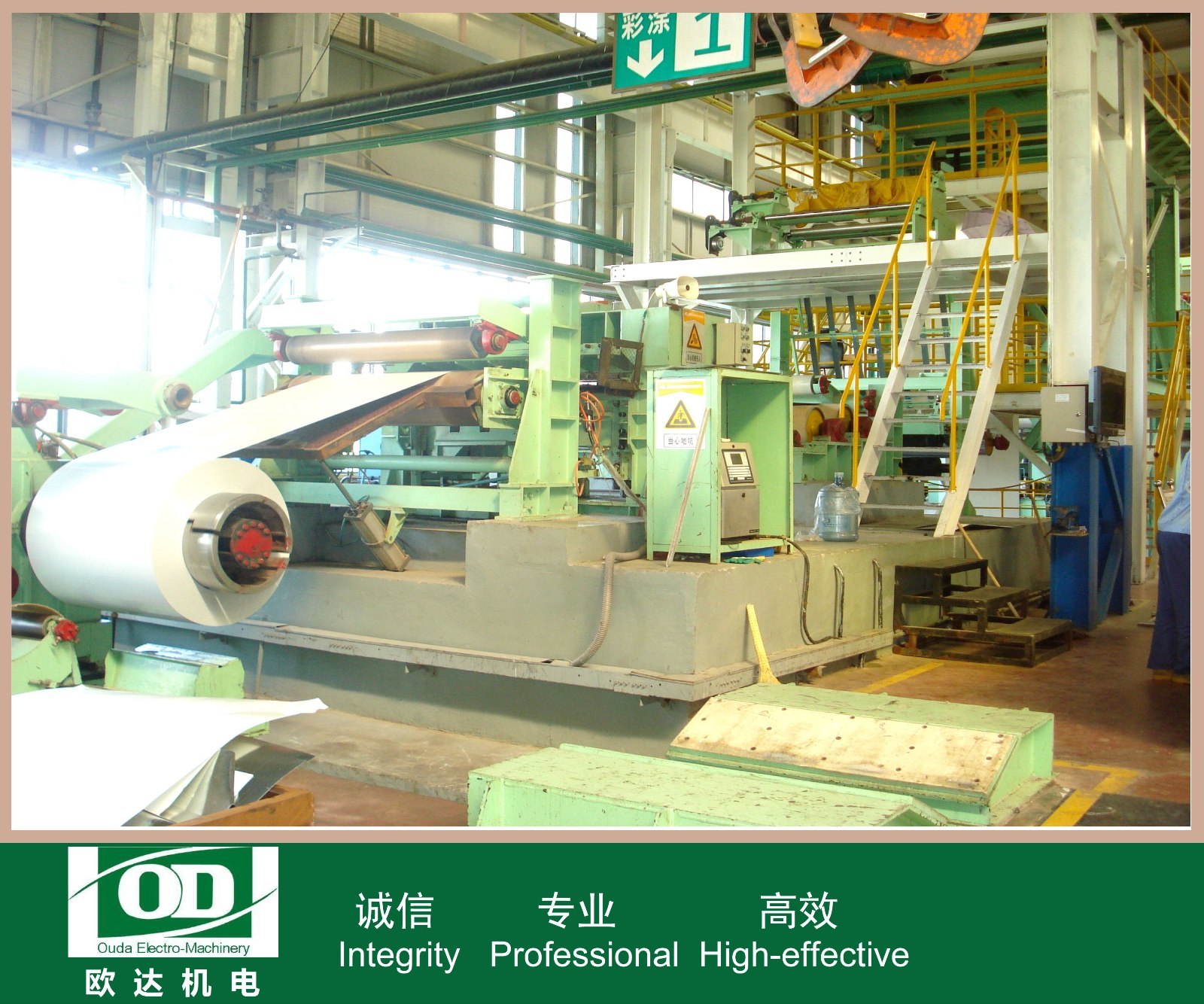

Carbon steel equipment--color coating line for home appliances

Technical parameters

Materials	Cold Rolling	Galvanized	Unit
Yield strength	130--350	130--380	Mpa
Tensile strength	250--420	250--420	Mpa

Steel tape measure
I.D.: 508mm, 610mm
Outer diameter: 2100mm
Substrate roll weight: 20 tons maximum
Substrate oil content:
Galvanized plate 400 - 600 mg/m2 (both sides)
Cold plate 700--1000mg/m2 (both sides)
Substrate quality: Unevenness less than 5l
Galvanized sheet galvanizing volume: 40 - - 250 mg/m2 (both sides)
Substrate specifications:
Thickness: 0.25mm --1.2mm
Board width: 600mm-- 1250mm

Colored wire for home appliances unit performance table

Project unit	Project name	Number (sets)
Shaoxing Wancheng	1250 color printing line unit	1
Syria	1450 Color Line Equipment	1
Korean Encyclopedia	1550 Color Line Equipment	1
Qingdao Haier	1450 Color Line Equipment	1
Hefei Yodogawa Seiyu	1450 Color Line Equipment	1
Liaoning Yinheng	1450 Color Line Equipment	1
Changshu Yehui	1450 Color Line Equipment	1
